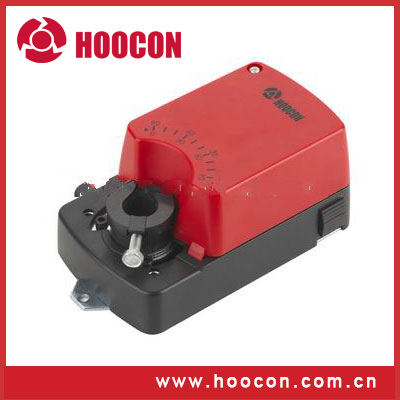

HVAC System 4/6Nm 24V on/off Control Air Damper Actuator

HVAC System 4/6Nm 24V on/off Control Air Damper Actuator

FOB Price:
 Unpriced
Min.Order Quantity:
1 Piece
Supply Ability:
20000 Piece per Month
Port:
Shanghai/ Ningbo
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C, T/T, Western Union, Cash
Brand:
HOOCON
Products Model:
DA4/6MU24-D/DS
  • Products Details

Quick Details

  • Brand Name: HOOCON

    Model Number: DA4/6MU24-D/DS

    Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

  • Packaging Details: 1 piece per inner box, 12 pieces per master carton, each inner box with instruction manual, metal handler, torque arm, screws provice OEM service.
  • Delivery Detail: 30 Day

Specifications


Product Description



Specifications

1)     For operation of air control dampers in HVAC system

2)     On/Off /2-Point/3-Point

3)     -DS type include 2 group of auxiliary switches



Technical Specification



DA4MU24-D/DS

 DA6MU24-D/DS

Electrical
data

Nominal voltage

AC24V 50/60Hz  DC24V

Nominal Voltage range

AC/DC 19.2...28.8V

Power consumption

3W@Nominal toque
0.5W@Holding

Wire sizing

0.5mm2



Functional
data

Torque

4Nm

Damper size

0.8m2

1.2m2

Direction of rotation

Manual regulation

Manual override

Gearing latch disengaged by push button, self-resetting

Angle of rotation

Max.90°

Running time

<50S(90°)

<70S(90°)

Sound power level

45dB

Position indication

Mechanical



Working
conditions

Protection class

(safety low voltage)

Protection degree

IP44

Ambient temperature

-20…+50

Inventory temperature

-30…+80

Humidity test

95%RH, non condensing/EN 60730-1



Dimensions
Weight

Dimensions

See “Dimensions”

Shaft length

>50mm

Shaft diameter

6...16mm  8X8...12 X12mm

Weight

<0.75Kg







Wiring Diagram

Actuator







Auxiliary switch

Resistance load 3A,230V

Inductive load 1.5A,230V





Company Information



HOOCON--- means different way of life,innovation. HOOCON adhere to the principle of "people-oriented" "innovation in advance", and the concept of dedicated to customer service,win-winwith cooperation partners, win-win with employees, gain elite strength together continually ,integrate industry resources at home and abroad, dedicated to provide customers the best quality products and the most perfect service!





Basic Information



  Business Type: Manufacturer
  Main Products: Damper Actuator,Differential Pressure Switch,Electric Valve
  Number Of Employees: 101 - 200 People









Trade & Market



  Main Markets:

Eastern Europe

Western Europe
Eastern Asia
Mid East
Oceania

Africa
Southeast Asia
South America
North America





Factory Information

  Contract Manufacturing: OEM Service Offered   Design Service Offered   Buyer Label Offered













Ningbo Hoocon Automation Control Equipment Co., Ltd specializes in HVAC (central air conditioning automatic control system) actuator design, manufacture and sales with professional designers and sales team.

Hoocon before known as Cixi Shuangguan Telecommunicate Equipment Co.,Ltd. which founded in 1998, and started to produce parts of actuators from 2003, after more than 10 years researching and developing experience, Hoocon has qualification to provide good quality products to customers.

Hoocon supply products include Non-Spring return General Damper Actuators, Spring return Actuators, Fire and Smoke Actuators, Electric Valve Actuators and accessories. Products from the parts to the machine have been rigorously tested, guarantee all products' lifetime more than 80,000 cycles or 2 years.

Factory covers an area of 30,000 square meters, workshop 35,000 square meters. Equipment includes injection molding machine, hydraulic machine, hobbing machine, reflow, hardness tester, and other related equipment. Max. capacity 240,000 sets per year.

We hope our professional service can be a part of your success.





Pre-Sales Service

  • Inquiry and consulting support.
  • Sample testing support.
  • View our Factory.

Pre-Sales Service

  • Inquiry and consulting support.
  • Sample testing support.
  • View our Factory.









Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
